3LPE FBE Anticorrosion Coating System for Oil & Gas Pipelines
Product Specifications
| Attribute | Value |
|---|
| Coating | Powder Coating |
| Surface Treatment Grade | ≥SA2.5 |
| Type | Coating Production Line |
| Coating Material | Epoxy Powder, Adhesive, Polyethylene |
| Highlights | PLC automatic control system |
Product Overview
The 3LPE/FBE anticorrosion insulation pipeline coating system is specifically engineered for oil and gas pipelines, offering
superior protection against corrosion and environmental damage.

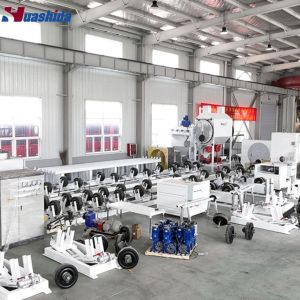

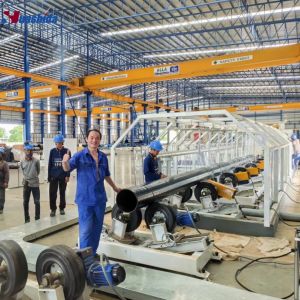

3PE Steel Anticorrosion Pipe Coating Production
Our 3PE anti-corrosion coating production line features a
three-layer PE anti-corrosion structure, with a diameter range of
φ50 ~ φ4200, designed for comprehensive pipeline protection.
Qingdao Huashida Machinery Co., Ltd. offers customized production
capabilities to meet diverse customer requirements for
high-performance 3PE coating solutions.
Coating Structure
- First Layer: Fusion-bonded epoxy powder (FBE > 120µm)
- Second Layer: Adhesive (AD) 170 ~ 250µm
- Third Layer: Polyethylene (PE) 1.8 ~ 4.2mm
Key Features
- Extends pipeline lifespan from 5-10 years to 50-100 years
- High mechanical strength with excellent electrical insulation
properties
- Waterproof, wear-resistant, and anti-aging characteristics
- Ideal for harsh environments and corrosive conditions
- Energy-efficient sealing reduces operational costs and
environmental impact
Applications
This system is widely used in gas and oil transmission lines,
municipal gas supply systems, water pipes, and other fluid
transport conduits, enhancing mechanical capabilities while
providing superior protection.
Production Process
Upload pipes → Pipes screw conveyor → Rust removal with
intermediate frequency heating → Epoxy powder coating → Outer layer
solid & polyethylene coating → Cooling spray → Pipes screw conveyor
→ Grinding pipes → Unload pipes
Main Equipment List
| A. Derusting Equipment |
|---|
| 1 | Pipe wheel conveyor | 1 |
| 2 | Shot Blasting Machine | 1 |
| 3 | Cyclone Dust Collector | 1 |
| 4 | Pulse dust collector | 1 |
| 5 | Centrifugal exhaust fan | 1 |
| 6 | Rust removal equipment PLC | 1 |
| B. Coating Equipment |
|---|
| 1 | Pipe wheel conveyor | 1 |
| 2 | Induction heating device | 1 |
| 3 | Powder spraying device | 1 |
| 4 | Automatic loading dryer | 2 |
| 5 | SJ-65/30 Extruder | 1 |
| 6 | SJ-120/30 Extruder | 1 |
| 7 | Hot melt adhesive extruder die | 1 |
| 8 | PE sheet extruder head mold | 1 |
| 9 | Hot melt adhesive/PE sheet coating device | 1 |
| 10 | Environmental Protection Ventilation equipment | 1 |
| 11 | Cooling Spray equipment | 1 |
| C. Platform Equipment |
|---|
| 1 | Steel pipe uploading platform | 1 |
| 2 | Downloading platform | 1 |
| 3 | Pipe storage platform | 1 |
| 4 | Turnover mechanism | 3 |
| D. Groove Equipment |
|---|
| 1 | PE Beveling Machine | 2 |
| 2 | Hydraulic Lifting and Turning Machinery | 1 |
| 3 | Hydraulic Equipment | 1 |
| 4 | PLC automatic control system | 1 |
Technical Details
Corrosion-resistant steel pipes are categorized into internally
treated and externally treated types. Internally treated pipes use
protective coatings, while externally treated pipes primarily
feature 3PE coating technology.
Qingdao Huashida's 3PE anti-corrosion production line utilizes
mature technology to provide effective protection for both pipe
interiors and exteriors. Suitable for various pipe types including
straight-seam and spiral pipes, our production line features a
comprehensive ISO9001-certified quality assurance system.
