High Efficiency Steel Pipe Outer Wall FBE Coating for 3lpe Coating
Pipe Making Machinery
Description

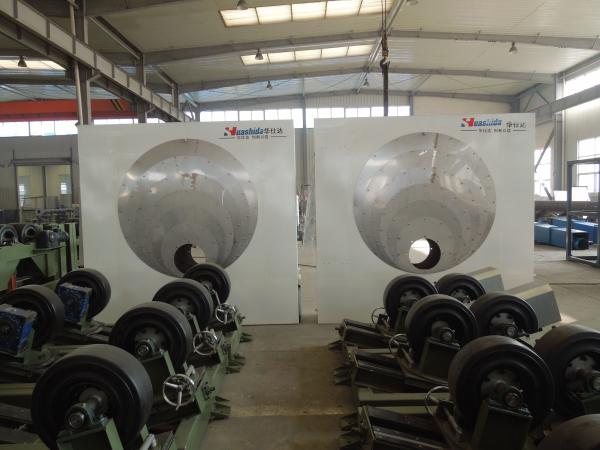

The Steel pipe external wall shot blasting machine includes pipe conveyor, shot blastor, elevator, platform loading
abrasive, dust removal system, electric control system.
3PE anti-corrosion coating production line, is three PE
anti-corrosion structure of anti-corrosion pipeline production
line, diameter range φ60 ~ φ1420, wall thickness range of 2.5-18mm,
the use of three anti-corrosion. Namely, a layer of epoxy powder
(FBE> 100µm), the second layer of adhesive (ad) 170 ~ 250µm, the
third layer of polyethylene (PE) 2.5 ~ 3.7mm
| No. | Name | Set |
| 1 | Pipe conveyor | 1 |
| 2 | Shot blast Machine | 1 |
| 3 | Elevator | 1 |
| 4 | Platform loading abrasive | 1 |
| 5 | Cyclone dust collector | 1 |
| 6 | Pulse cartridge dust collector | 1 |
| 7 | Centrifugal exhaust fan | 1 |
| 8 | PLC | 1 |
Product Parameter
Overall dimension: 20 m X 15 m
Total water consumption: 30 cubic meters
Total power consumption: 450 kilowatts
Total gas consumption: 6 cubic meters/min.
Temperature condition: the temperature inside the workshop is
higher than 5 degrees.
The diameter of steel pipe: 426, 630, 720, 820, 1220
Curvature radius: 4-6D
Bending angle: 15-90 degrees.
Steel tube wall thickness: 8 mm -12 mm
Epoxy powder thickness: ≥170 um
AD copolymer adhesive thickness: 170-250 um
PE layer thickness: 2.5 - 3.7 mm
Application
The three-layer HDPE stripe winding process, with epoxy powder coating as bottom layer and binding adhesive as second layer, is the widely used technique in steel pipe anti-corrosion all over the world. The anti-corrosion steel pipe are applied in oil, gas and water
supply pipelines.
Blasting machinery
steel pipe conveyor
FBE Coating machinery
PE/PP layer wrap extruder line
Main Equipment of 3PE anti-corrosion coating processing
